Faster Production
All-round structural steel processing
3D Cutting Machine
Machine highlights
1
All-round structural steel processing
2
Maximum pipe weight 1000kg
3
Designed for complex structural parts
Applications
1
Steel structure construction
2
Shipbuilding
3
Mining machinery
4
Energy equipment
Laser Cutting Machine
Best for structural steel processors that need beam, profile, and heavy fabrication cutting support.
Laser Cutting Machine
All-round structural steel processingMaximum pipe weight 1000kgDesigned for complex structural parts
<= 0.1 mmX/Y/Z Positioning Accuracy
1000 kgMaximum Weight of Pipe To Be Cut
Cut / drill / bevel / markProcess Coverage
Model and laser power directionShare material, thickness, working area, and production volume so the quote can match power, table size, and options to your shop.
Local Technical TeamU.S. response supportFree test cuts welcome
Why choose this machine
Designed around practical production outcomes.
Start with the business value: throughput, labor savings, stability, and serviceability before comparing technical parameters.
Lower Labor Cost
Automation-ready layouts help reduce manual handling and repeated operator intervention.
Stable Accuracy
<= 0.1 mm
Easy Maintenance
Clear machine layouts and support access help simplify service planning.
Applications
Where this machine creates value.
Steel structure construction
H-Beam can be configured around this workflow during quotation, including material, thickness, power, and handling needs.
Shipbuilding
H-Beam can be configured around this workflow during quotation, including material, thickness, power, and handling needs.
Mining machinery
H-Beam can be configured around this workflow during quotation, including material, thickness, power, and handling needs.
Energy equipment
H-Beam can be configured around this workflow during quotation, including material, thickness, power, and handling needs.
<= 0.1 mmX/Y/Z Positioning Accuracy
1000KgMaximum Weight of Pipe To Be Cut
H-beam cutting, precision drilling, multi-angle beveling, high-precision markingProcess Coverage
Service & support
Support before and after the machine arrives.
LUMINARY LASER keeps the buying process focused on machine fit, installation readiness, training, and responsive technical communication.
Installation support
Machine setup guidance for site preparation, commissioning, and workflow handoff.
Training support
Operator onboarding for cutting workflow, machine operation, and daily care.
Local parts planning
Houston-based service coordination and parts planning for U.S. customers.
Remote diagnostics
Technical communication and troubleshooting support for production questions.
Technical specifications
H-Beam parameters
| X/Y/Z Positioning Accuracy | <= 0.1 mm |
|---|---|
| Maximum Weight of Pipe To Be Cut | 1000Kg |
| Process Coverage | H-beam cutting, precision drilling, multi-angle beveling, high-precision marking |
Product video
H-Beam video
Machine details
Show details

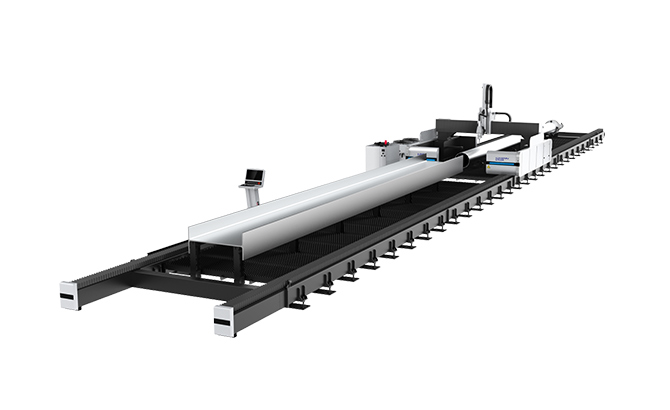

H Shaped Steel Structure Laser Cutting Machine

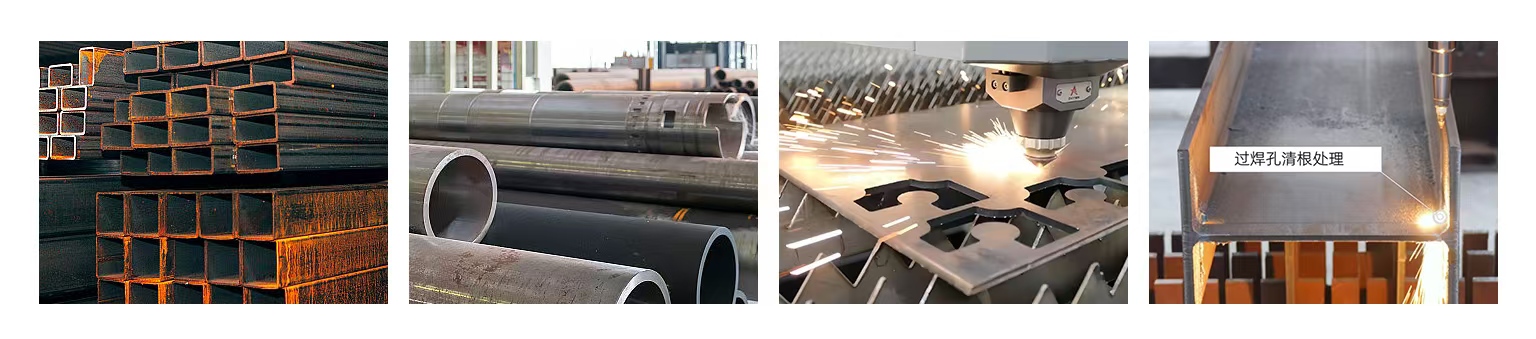

The 3D Cutting Steel Laser Cutting Machine is a versatile all-in-one system designed to handle cutting and blanking for H-beams, channel steel, round tubes, square tubes, angle steel, flat plates, and plate beveling in one device.
High Precision Round Tube Processing
Luminary's all-in-one heavy-duty H-beam laser cutter supports high-precision round tube processing with diameters from 5.9 in to 24.8 in (150 mm to 630 mm).
Processing Of Multiple Types
The H-Shaped Structural Laser Cutter processes a wide range of sizes and is built for fine cutting of round tubes, flat plates, and steel profiles.
Cost-Effective

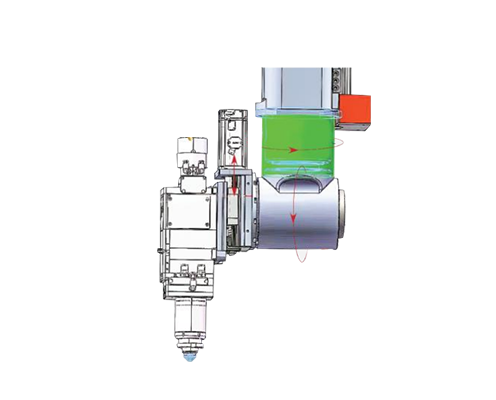

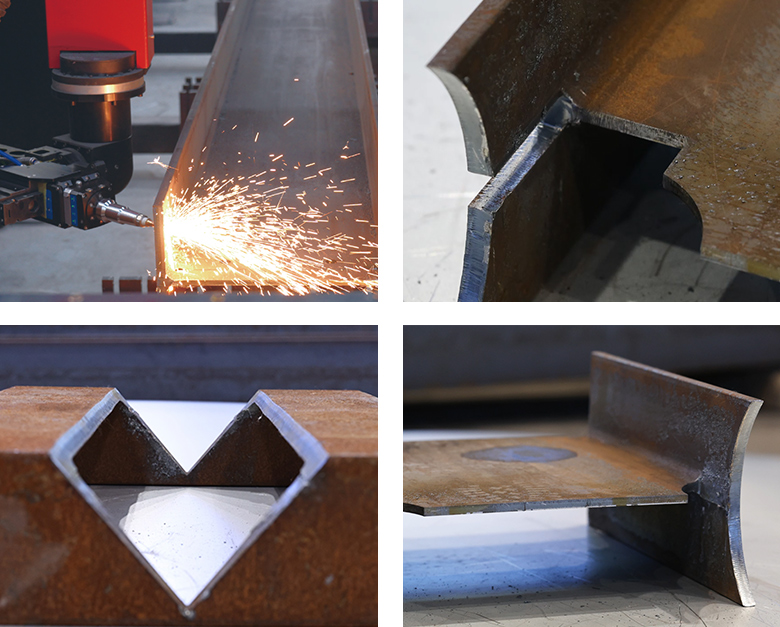

H-Beam Laser Cutting Equipment can perform difficult work such as bevel cutting and line cutting to meet the diverse needs of complex structural parts.

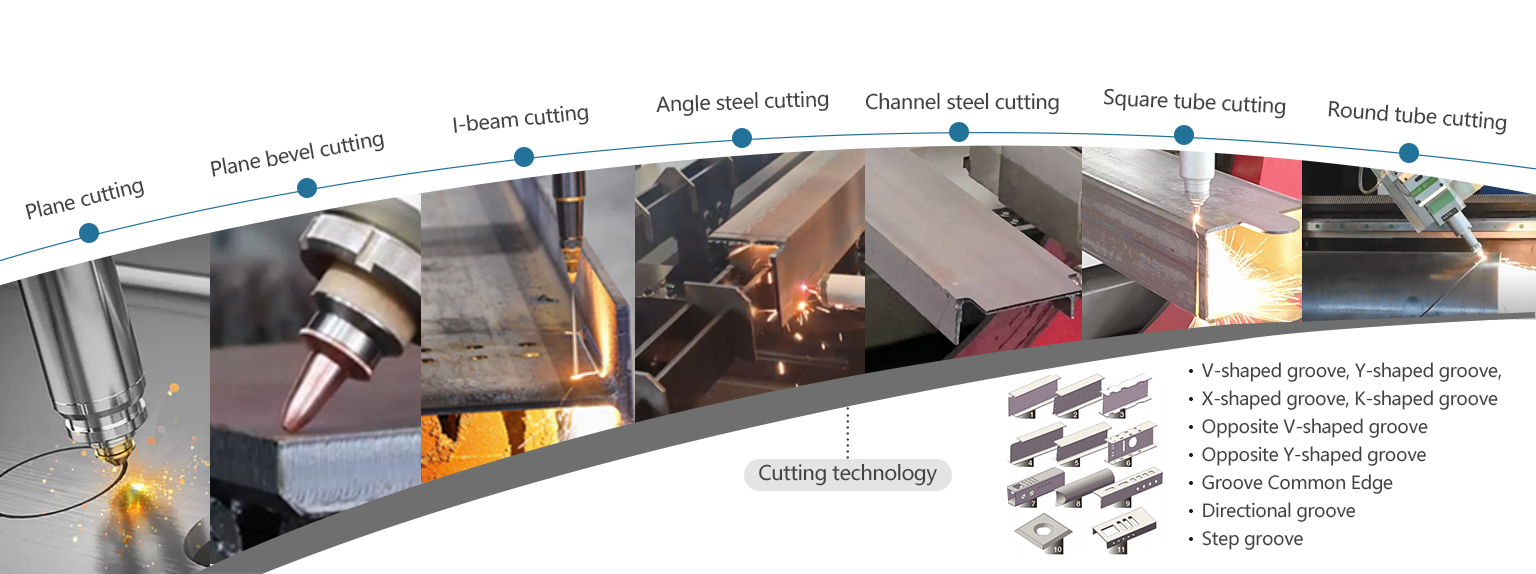

Seven-in-one functions and cutting technology

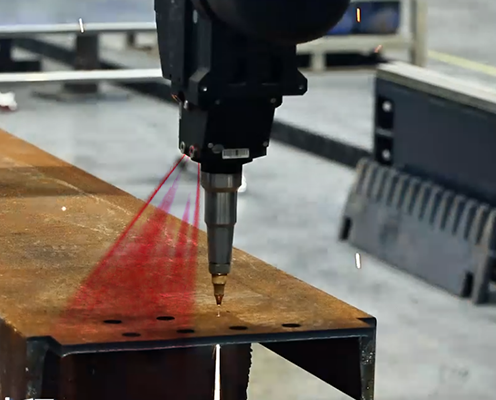

This industrial system integrates H-beam cutting, precision drilling, multi-angle beveling, high-precision marking, and heavy-duty material processing for flexible batch production.

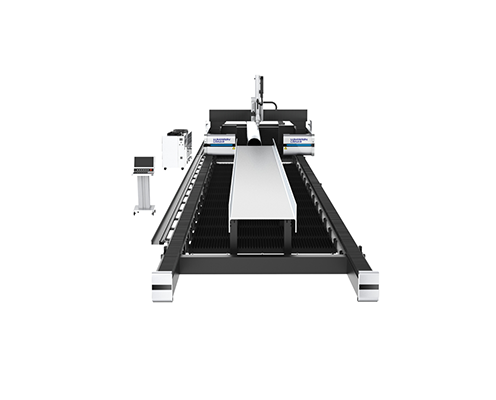

Laser Cutting Table Bed
The open structure double-station design saves loading and unloading time. The large-format bed supports transportation, material clamping, and reduced cutting heat impact after welding, annealing, roughing, secondary aging, and finishing.
Product details
H-Beam machine views
Process and detail banners
H-Beam production views
FAQs
Fiber Laser Cutting Machine FAQs
What happens if there is a sudden power outage during processing, and how can laser processing continue
The resume-from-breakpoint feature works like a save point for your cutting program. If power is interrupted or an operator needs to pause production, the control system remembers the exact cutting position. Once power is restored or the job is ready to continue, the machine resumes from that point to reduce scrap, rework, and downtime.
How long is your warranty
Luminary laser cutting machine is a long-term investment, engineered to last for over a decade. The heart of the machine, the laser source, typically runs for over 100,000 hours. And to give you peace of mind, we provide a comprehensive 2-year warranty. It's a testament to our confidence in the machine's durability and our commitment to your satisfaction.
Can laser metal cutting machines cut rusty iron plates directly
Cutting through rusted metal isn't ideal. Why? Because rust affects how the laser interacts with the material, potentially leading to subpar cuts and wasted materials. More critically, it can cause a blowout during piercing, damaging delicate optics and reducing the lifespan of your machine. We recommend treating the rust first. This preparation step can save you time and resources in the long run.
What are the wearing parts of a laser metal cutting machine
In the realm of laser cutting, certain parts need your attention to maintain peak performance. These include the ceramic rings, nozzles, and various lenses that focus and protect the laser beam. Regular maintenance and timely replacement of these components are vital. They're the front-line heroes that keep your machine cutting crisply. So we always stress the importance of keeping these parts in check.
