Faster Production

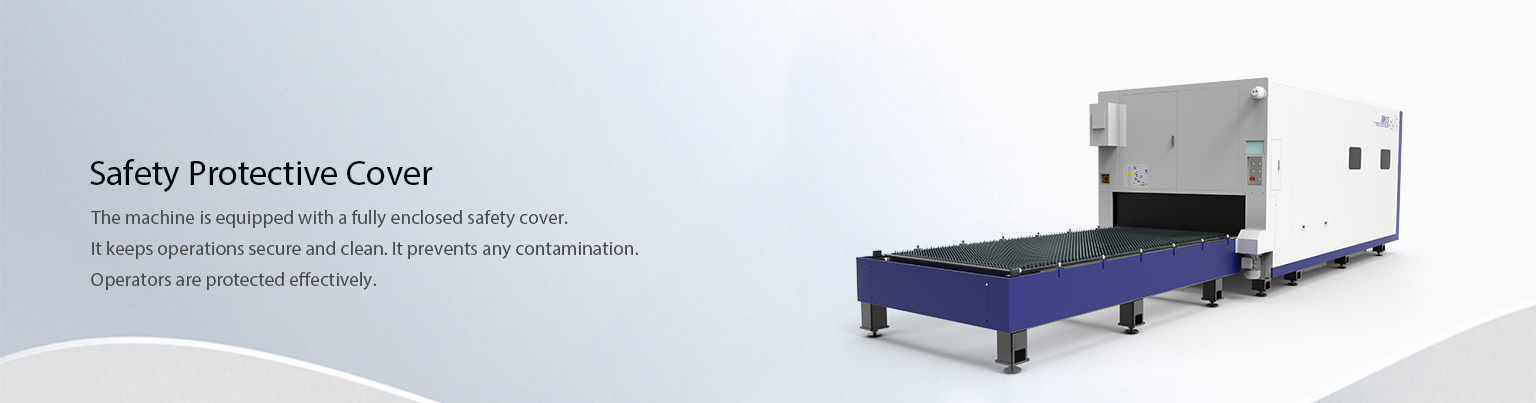

Enclosed cutting area
Sheet Laser Cutting Machine
Machine highlights
1
Enclosed cutting area
2
6000W to 30000W laser power options
3
2G maximum acceleration
Applications
1
Sheet metal fabrication
2
Industrial production lines
3
Precision enclosure and cabinet manufacturing

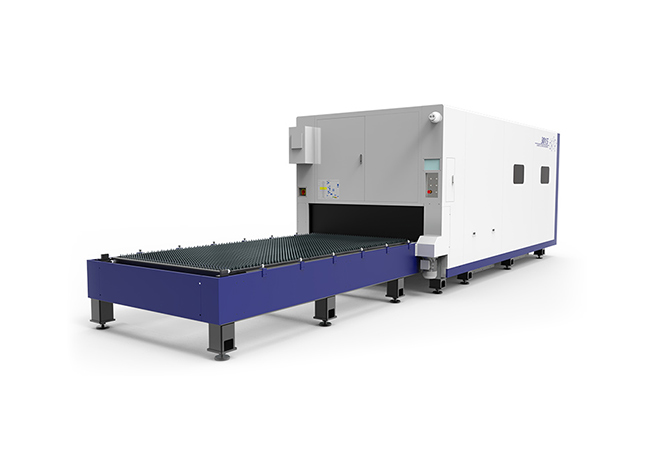

Protective Enclosed Fiber Laser Cutting Machine
For enclosed sheet-metal cutting, cabinet/enclosure production, and high-power shop-floor use.
Fully Enclosed Dual Platform Fiber Laser Cutting Machine
Fully enclosed6-30 kWDual platformHouston support
6-30 kWLaser Power Supply
5' x 10' / 20' x 5'Working Area
2GMaximum Acceleration
+/-0.0012 in (+/-0.03 mm)Positioning Accuracy
Model and laser power directionShare material, thickness, working area, and production volume so the quote can match power, table size, and options to your shop.
Local Technical TeamU.S. response supportFree test cuts welcome
Why choose this machine
Designed around practical production outcomes.
Start with the business value: throughput, labor savings, stability, and serviceability before comparing technical parameters.
Lower Labor Cost
Automation-ready layouts help reduce manual handling and repeated operator intervention.
Stable Accuracy
+/-0.0012 in (+/-0.03 mm)
Easy Maintenance
Clear machine layouts and support access help simplify service planning.
Applications
Where this machine creates value.
Sheet metal fabrication
Supports nested flat sheet and plate work where cut quality, safety, and repeatable throughput matter.
Industrial production lines
Helps production line buyers reduce manual handling and keep cutting output predictable across shifts.
Precision enclosure and cabinet manufacturing
Fits enclosure and cabinet manufacturing where clean edges, consistent panels, and enclosed operation are priorities.
5' x 10' (3000*1500mm); 20' x 5' (6000*1500mm)Working Area
6000w, 12000w, 20000w, 30000w, etc.Laser Power Supply
2GMaximum Acceleration
+/-0.0012 in (+/-0.03 mm)Positioning Accuracy
Service & support
Support before and after the machine arrives.
LUMINARY LASER keeps the buying process focused on machine fit, installation readiness, training, and responsive technical communication.
Installation support
Machine setup guidance for site preparation, commissioning, and workflow handoff.
Training support
Operator onboarding for cutting workflow, machine operation, and daily care.
Local parts planning
Houston-based service coordination and parts planning for U.S. customers.
Remote diagnostics
Technical communication and troubleshooting support for production questions.
Technical specifications
LF-C parameters
| Working Area | 5' x 10' (3000*1500mm); 20' x 5' (6000*1500mm) |
|---|---|
| Laser Power Supply | 6000w, 12000w, 20000w, 30000w, etc. |
| Maximum Acceleration | 2G |
| Positioning Accuracy | +/-0.0012 in (+/-0.03 mm) |
| Voltage | 380V 3PH 50/60HZ |

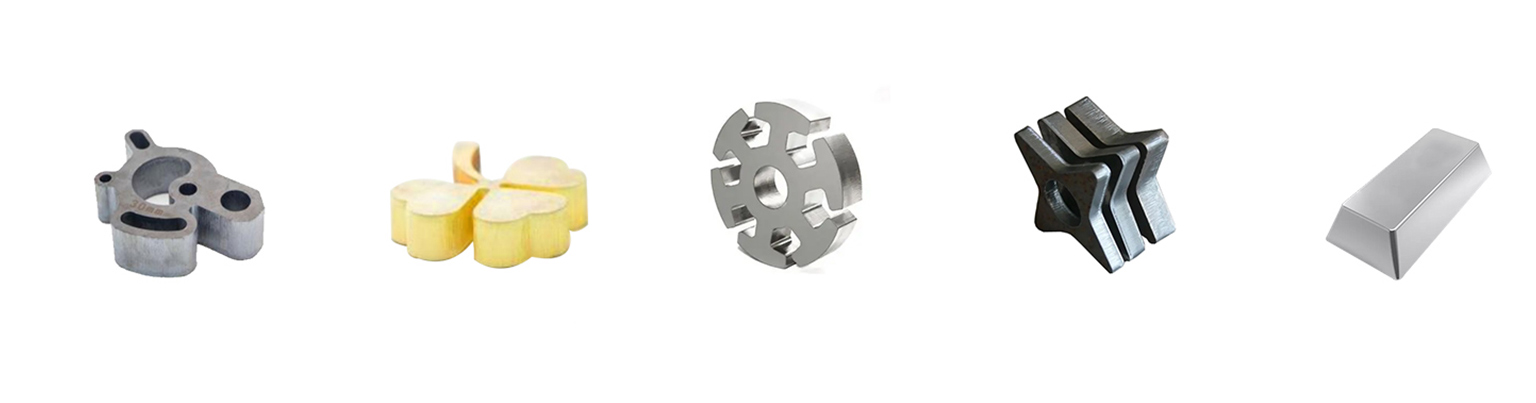

| Cutting Ability | Carbon Steel: 1-80mm; Stainless Steel: 1-70mm; Aluminum: 1-60mm; Brass: 1-20mm |
| Upgrade | Air Conditioner, Smoke Purifier, Air Compressor, Voltage Regulator, Safety Light Curtain, Door Protection Switch |
Product video
LF-C video
Machine details
Show details

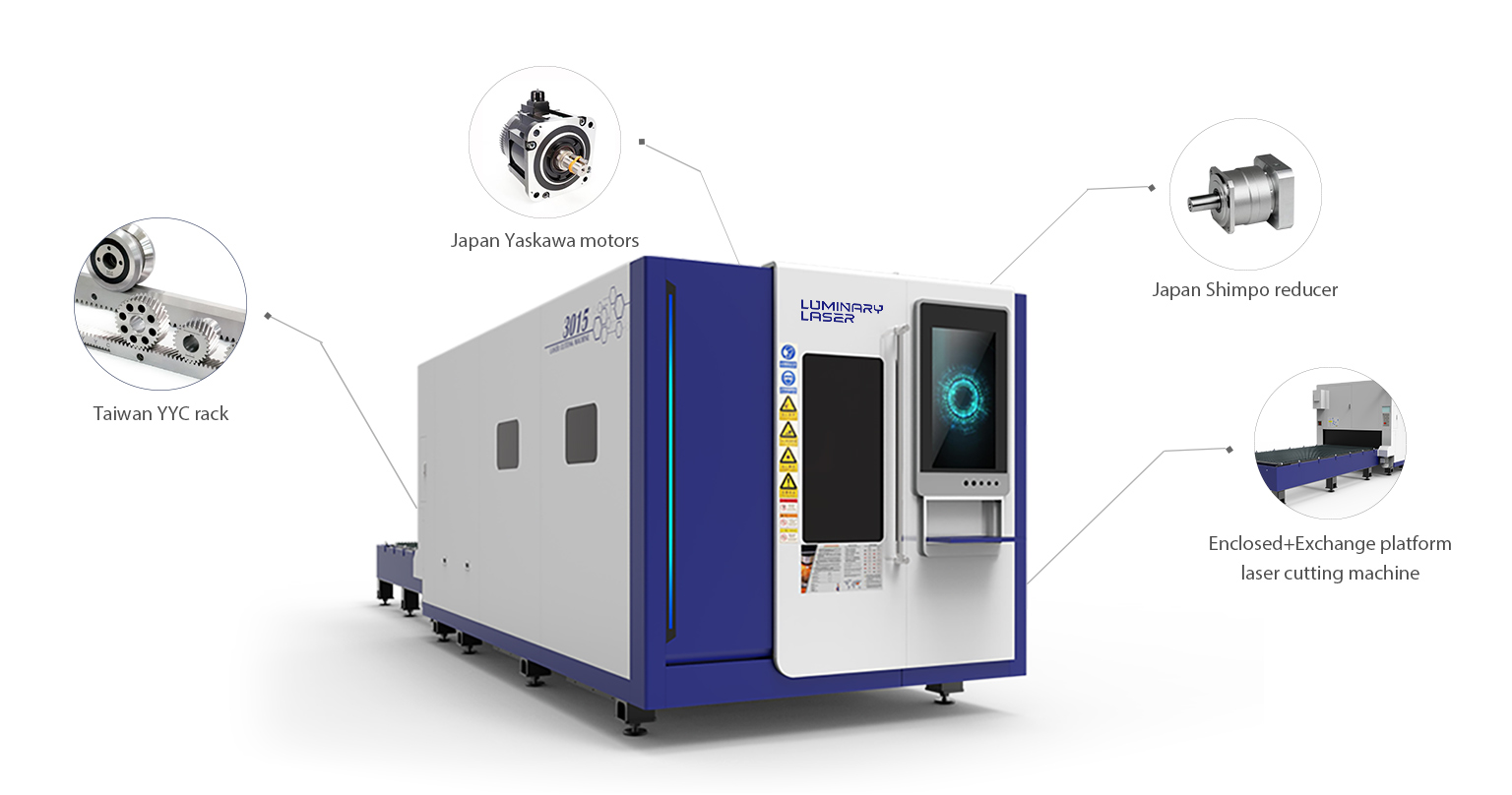

Luminary Machine Precision Assurance
Servo motors, reducers,racks, and other components all use top brands, ensuring high quality,high machine tool operating precision, and guaranteed lifespan. Sheet Metal Laser Cutting Machine Technical Specifications Mode LF-3015C LF-6015C LF-4020C LF-6025C LF-12025C Working Area 5'x10'(3000*1500mm) 20'x5'(6000*1500mm) 13'x6.5'(4000*2000mm) 20'x8'(6000*2500mm) 39'x8'(12000*2500mm) X Y Z Axis Stroke 5'x10'2"x4" 1520*3100*100mm 5'x19'10"x4" 1520*6050*100mm 6'8"x13'4"x4" 2040*4050*100mm 8'3"x20'x10" 2510*6100*260mm 8'3"x41'x10" 2510*12500*260mm Laser Power Supply 6000w, 12000w, 20000w,30000w,etc. Maximum Acceleratio
Sheet Metal Laser Cutting Machine Features

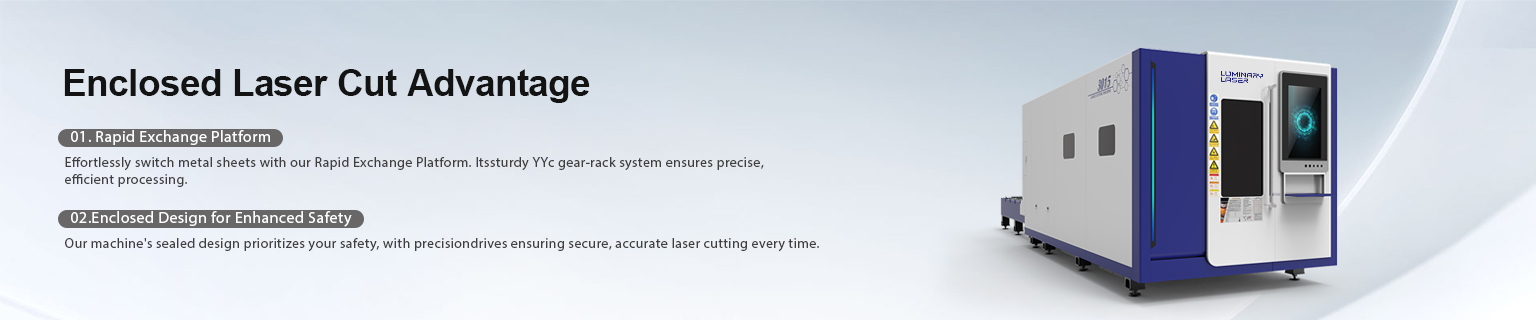

Exchange Platform Bed Our machine features a swift material exchange platform. It speeds up work by allowing quick changes. Downtime is minimized. This boosts overall productivity.
Cast Aluminum Beam
Our beam is made from high-grade aluminum. This material is chosen for its strength. It ensures swift and agile cutting motions.Intelligent Control System
MAX Laser
The use of single-mode or multi-mode fiber technology ensures good beam quality (low M² value), stable output power and uniform beam during cutting or welding.
Intelligent Operating System
“CypCut plane cutting�?software is a set of software specially developed for the deep customization of the laser cutter machine industry. Easy to use, rich in functions, and suitable for various processing occasions.
Laser Cutting Head
Flexible Component Options,Choose from a range of laser source, control system, and laser cut head for a machine that's tailored just for you.
Product details

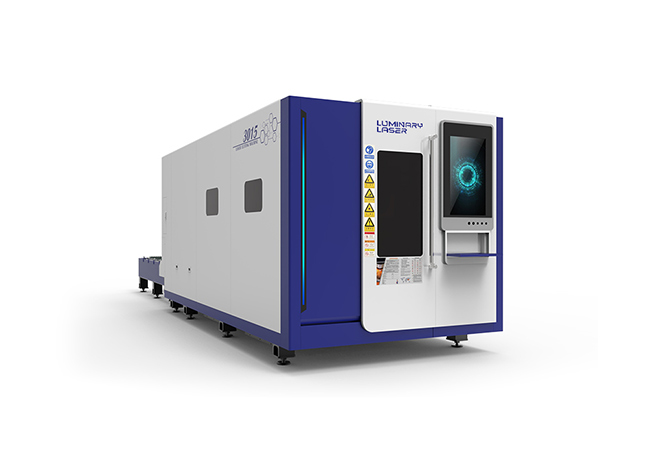

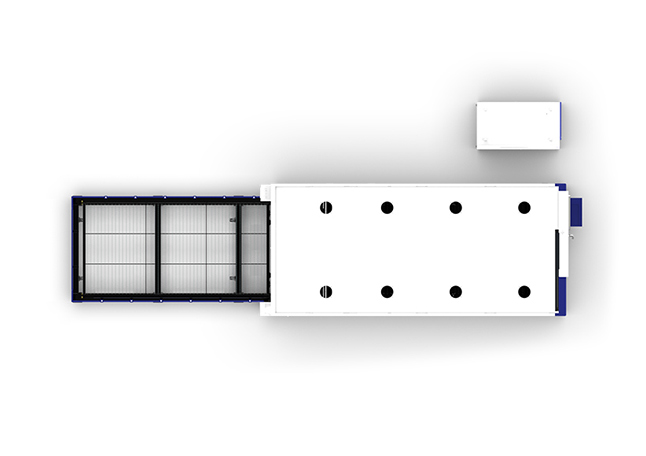

LF-C machine views
Process and detail banners
LF-C production views
FAQs
Fiber Laser Cutting Machine FAQs
What happens if there is a sudden power outage during processing, and how can laser processing continue
The resume-from-breakpoint feature works like a save point for your cutting program. If power is interrupted or an operator needs to pause production, the control system remembers the exact cutting position. Once power is restored or the job is ready to continue, the machine resumes from that point to reduce scrap, rework, and downtime.
How long is your warranty
Luminary laser cutting machine is a long-term investment, engineered to last for over a decade. The heart of the machine, the laser source, typically runs for over 100,000 hours. And to give you peace of mind, we provide a comprehensive 2-year warranty. It's a testament to our confidence in the machine's durability and our commitment to your satisfaction.
Can laser metal cutting machines cut rusty iron plates directly
Cutting through rusted metal isn't ideal. Why? Because rust affects how the laser interacts with the material, potentially leading to subpar cuts and wasted materials. More critically, it can cause a blowout during piercing, damaging delicate optics and reducing the lifespan of your machine. We recommend treating the rust first. This preparation step can save you time and resources in the long run.
What are the wearing parts of a laser metal cutting machine
In the realm of laser cutting, certain parts need your attention to maintain peak performance. These include the ceramic rings, nozzles, and various lenses that focus and protect the laser beam. Regular maintenance and timely replacement of these components are vital. They're the front-line heroes that keep your machine cutting crisply. So we always stress the importance of keeping these parts in check.
