Faster Production
8' x 20' working area
Sheet Laser Cutting Machine
Machine highlights
1
8' x 20' working area
2
12000W to 50000W laser power options
3
0.8G maximum acceleration
Applications
1
Large-format metal fabrication
2
Heavy equipment components
3
High-volume sheet cutting

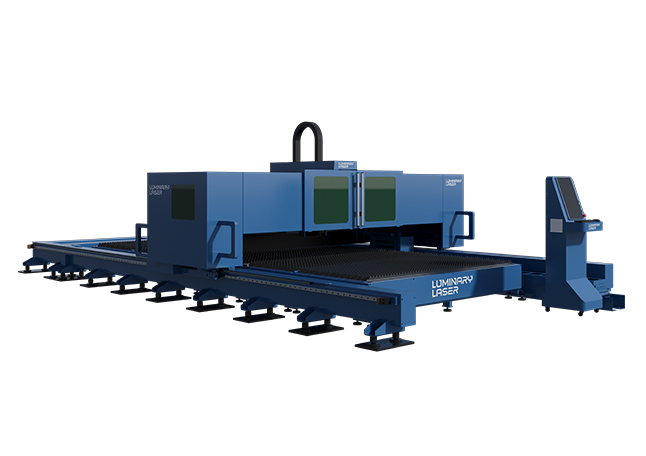

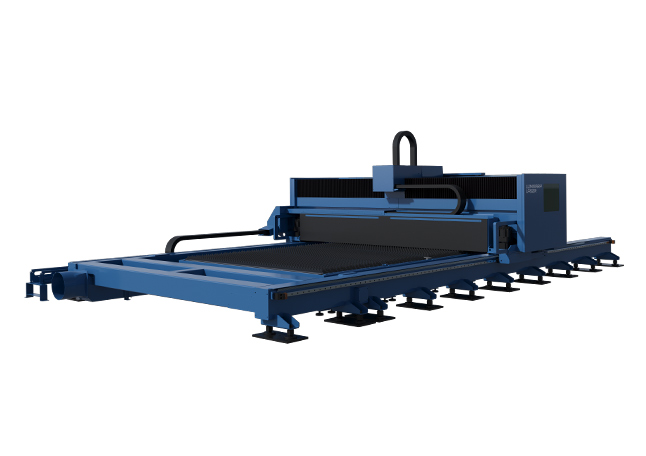

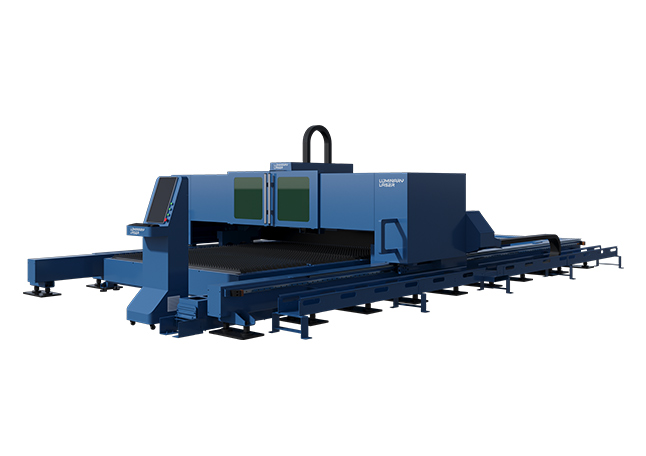

Large Size Fiber Laser Cutting Machine
Best for flat sheet, plate, panel, cabinet, and general metal fabrication workflows.
Large Size Fiber Laser Cutting Machine
8' x 20' working area12000W to 50000W laser power options0.8G maximum accelerationHouston support
12 kW, 20 kW, 30 kW, 40 kW, 50 kWLaser Power Supply
8' x 20'Working Area
0.8GMaximum Acceleration
+/-0.001in/feetPositioning Accuracy
Model and laser power directionShare material, thickness, working area, and production volume so the quote can match power, table size, and options to your shop.
Local Technical TeamU.S. response supportFree test cuts welcome
Why choose this machine
Designed around practical production outcomes.
Start with the business value: throughput, labor savings, stability, and serviceability before comparing technical parameters.
Lower Labor Cost
Automation-ready layouts help reduce manual handling and repeated operator intervention.
Stable Accuracy
+/-0.001in/feet
Easy Maintenance
Clear machine layouts and support access help simplify service planning.
Applications
Where this machine creates value.
Large-format metal fabrication
LF-6025S can be configured around this workflow during quotation, including material, thickness, power, and handling needs.
Heavy equipment components
LF-6025S can be configured around this workflow during quotation, including material, thickness, power, and handling needs.
High-volume sheet cutting
Supports nested flat sheet and plate work where cut quality, safety, and repeatable throughput matter.

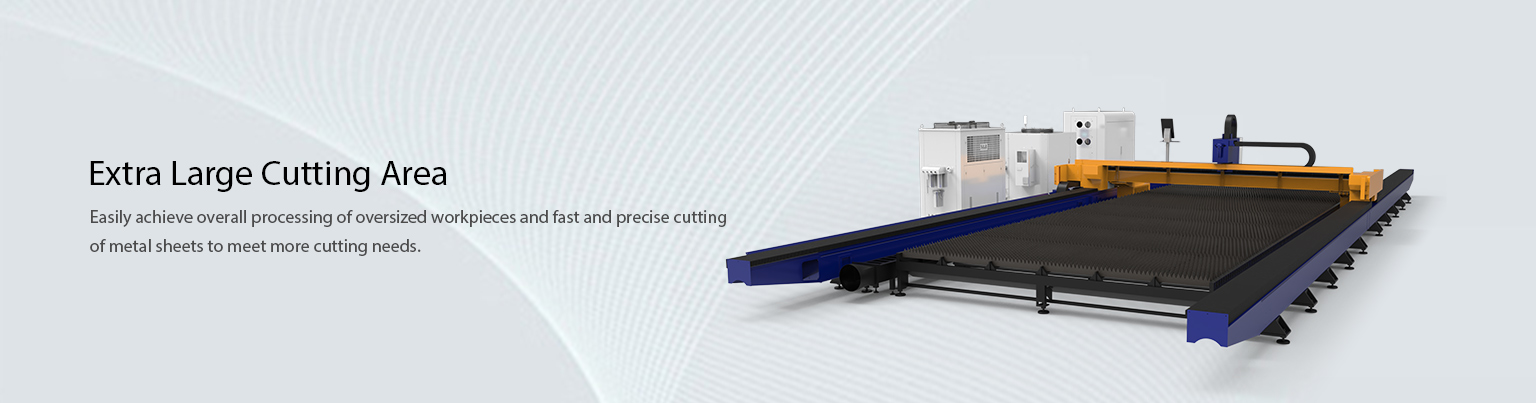

8' x 20'Working Area
12000w, 20000w, 30000w, 40000w, 50000wLaser Power Supply
+/-0.001in/feetPositioning Accuracy
328.08ft/minMaximum Operating Speed
Service & support
Support before and after the machine arrives.
LUMINARY LASER keeps the buying process focused on machine fit, installation readiness, training, and responsive technical communication.
Installation support
Machine setup guidance for site preparation, commissioning, and workflow handoff.
Training support
Operator onboarding for cutting workflow, machine operation, and daily care.
Local parts planning
Houston-based service coordination and parts planning for U.S. customers.
Remote diagnostics
Technical communication and troubleshooting support for production questions.
Technical specifications
LF-GR parameters
| Working Area | 8' x 20' |
|---|---|
| Laser Power Supply | 12000w, 20000w, 30000w, 40000w, 50000w |
| Positioning Accuracy | +/-0.001in/feet |
| Maximum Operating Speed | 328.08ft/min |
| Maximum Acceleration | 0.8G |
| Voltage | 380V 3PH 50/60HZ |
| Overall Dimensions | 28.54*16.57*7.22feet |
| Equipment Weight | 8300kgs |
| Upgrade | Air Conditioner, Smoke Purifier, Air Compressor, Voltage Regulator, Safety Light Curtain |
Product video
LF-GR video

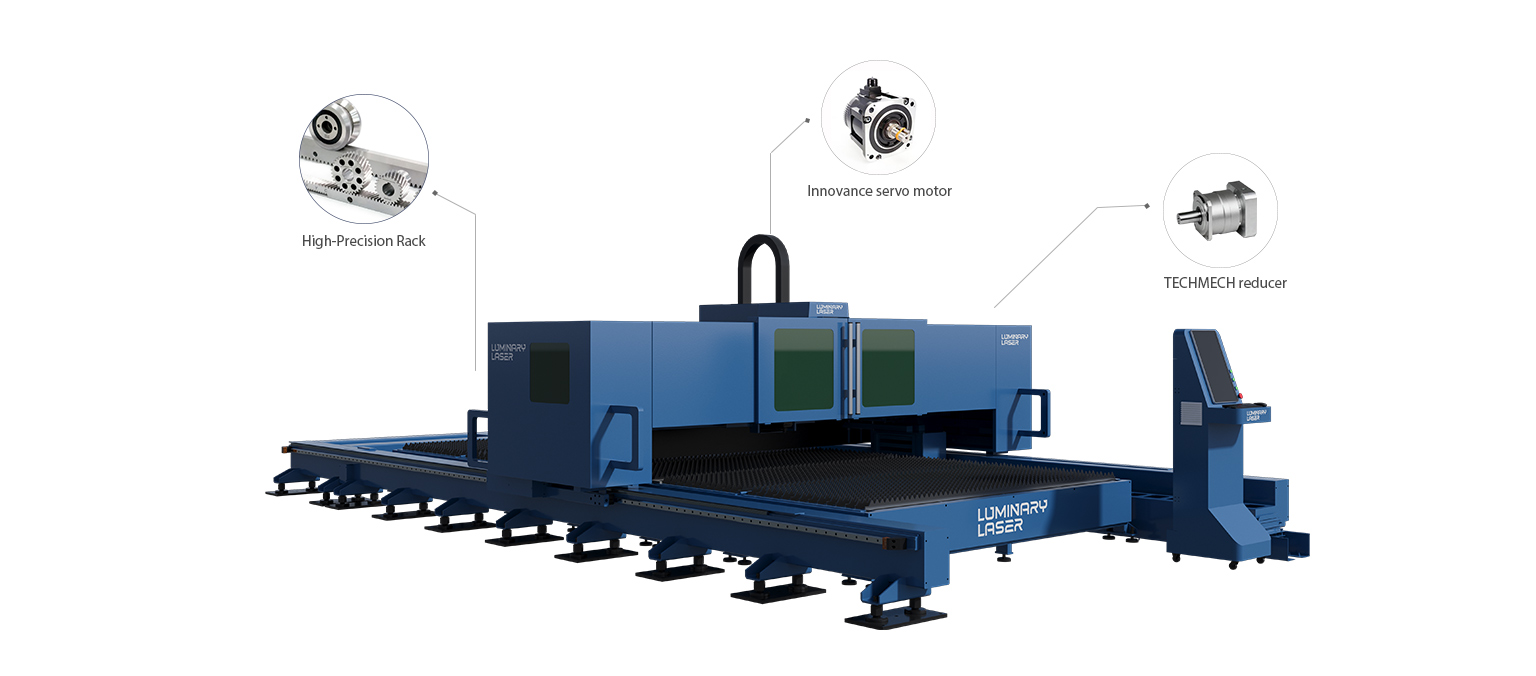

Machine details
Show details
Luminary Machine Precision Assurance
Therefore, all machine parts are from top brands to ensure high quality, high machine tool operating precision, and a guaranteed service life. Sheet Metal Laser Cutting Machine Technical Specifications Mode LF-6025S Working Area 8' x20' Positioning accuracy +/-0.001in/feet Laser Power Supply 12000w, 20000w, 30000w, 40000w, 50000w Maximum operating speed 328.08ft/min Maximum acceleration 0.8G Voltage 380V 3PH 50/60HZ Overall Dimensions 28.54*16.57*7.22feet Equipment Weight 8300kgs Upgrade Air Conditioner, Smoke Purifier, Air Compressor, Voltage Regulator, Safety Light Curtain "As Easy As Using A Smartphone - Sele
Super heavy Steel Welding Machine Bed
The laser cutter machine's bed adopts super-thick monolithic steel plate laser blanking. The groove welding method makes the plates reach equal strength butt. Then it undergoes stress annealing and natural aging treatment to eliminate internal stress and maintain the bed's extremely high stability and cutting accuracy.
Cast Aluminum Beam
Our beam is made from high-grade aluminum. This material is chosen for its strength. It ensures swift and agile cutting motions.Intelligent Control System
MAX Laser
The use of single-mode or multi-mode fiber technology ensures good beam quality (low M² value), stable output power and uniform beam during cutting or welding.
Intelligent Operating System
“CypCut plane cutting�?software is a set of software specially developed for the deep customization of the laser cutter machine industry. Easy to use, rich in functions, and suitable for various processing occasions.
Laser Cutting Head
Flexible Component Options,Choose from a range of laser source, control system, and laser cut head for a machine that's tailored just for you.
Product details
LF-GR machine views
Process and detail banners
LF-GR production views
FAQs
Fiber Laser Cutting Machine FAQs
What happens if there is a sudden power outage during processing, and how can laser processing continue
The resume-from-breakpoint feature works like a save point for your cutting program. If power is interrupted or an operator needs to pause production, the control system remembers the exact cutting position. Once power is restored or the job is ready to continue, the machine resumes from that point to reduce scrap, rework, and downtime.
How long is your warranty
Luminary laser cutting machine is a long-term investment, engineered to last for over a decade. The heart of the machine, the laser source, typically runs for over 100,000 hours. And to give you peace of mind, we provide a comprehensive 2-year warranty. It's a testament to our confidence in the machine's durability and our commitment to your satisfaction.
Can laser metal cutting machines cut rusty iron plates directly
Cutting through rusted metal isn't ideal. Why? Because rust affects how the laser interacts with the material, potentially leading to subpar cuts and wasted materials. More critically, it can cause a blowout during piercing, damaging delicate optics and reducing the lifespan of your machine. We recommend treating the rust first. This preparation step can save you time and resources in the long run.
What are the wearing parts of a laser metal cutting machine
In the realm of laser cutting, certain parts need your attention to maintain peak performance. These include the ceramic rings, nozzles, and various lenses that focus and protect the laser beam. Regular maintenance and timely replacement of these components are vital. They're the front-line heroes that keep your machine cutting crisply. So we always stress the importance of keeping these parts in check.
